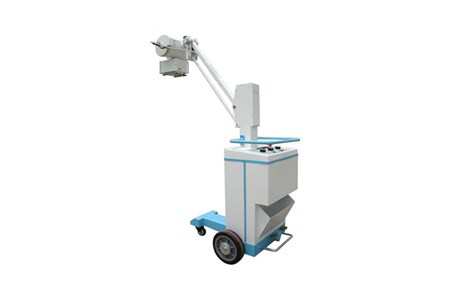

、 Mobile bedside machine features：

For hospital wards and emergency room photography dedicated

Flexible mobile operating performance

Wireless remote exposure, greatly reducing the dose of physician radiation

二、The main technical parameters：

1、  Power conditions：

    voltage：             communicate with 220V±22V；

     Power frequency：             50Hz±0.5Hz；

     battery capacity：            ≥5kVA；

     Power supply allows maximum internal resistance：    １Ω

2、  Photography conditions：   Tube voltage： 40-90kV a total of 11 files, each file 5kV;

      Tube current：               30,50mA total of 2 files;

      time：                      0.05s-6 s a total of 20 files

3、Mechanical behavior：

When the X-ray generator window down, the focus and the distance from the ground range of activities 450mm ~ 1770mm

The X-ray generator has a rotation angle of ± 180º around the horizontal axis

The X-ray generator has a rotation angle of ± 90º around the vertical axis;

4、Overall dimensions: 1290 (length) × 630 (width) × 1935 (high) (mm)
